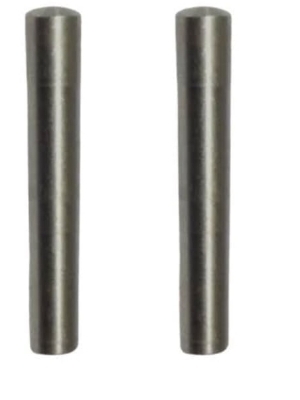

TAPPER DOWEL PIN 3X20

TAPPER DOWEL PIN 3X20 Specification

Thread Type
Other

Diameter
nominal (large) diameter is exactly 3 mm Meter (m)

Thickness
depends on which end of the pin you measure Meter

Tensile Strength
370 MPa to over 700 MPa Megapascals (MPa )

Standard
standard metric mechanical component

Grade
304

Corrosion Resistant
corrosion-resistant if they are made from the right material

Hardness
58 to 62 HRC

Surface Treatment
zinc Plating

Shape
slight conical shape

Capacity
varies by material and application Pcs/hr

Feature
a very slight, gradual taper, usually at a standard 1:50 ratio

Finish
precision-ground or polished finish with a 1:50 taper ratio.

Head Type
generally headless

Torque
Taper pins themselves do not have torque ratings. kgf-m

Load Capacity
shear loads Gram (g)

Drive Type
Friction Fit

Usage
high-precision mechanical alignment

Fasteners Type
Other

Material
Stainless Steel

Size
3X20

Height
3 Meter (m)

Tolerance
h10 (0 to -0.040 mm Inch

Product Type
solid, unthreaded taper pin

Application
precision alignment, locating components in jigs and

Weight
1 Kilograms (kg)

Color
silver or gray

Width
3MM Meter (m)

Length
20MM Meter (m)

TAPPER DOWEL PIN 3X20 Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
10 Days

About TAPPER DOWEL PIN 3X20

A 3x20 taper dowel pin is a cylindrical, precision-engineered fastener used to lock mechanical parts together, align components, or absorb lateral stress. The "3" indicates a nominal diameter of 3 mm, and the "20" specifies a total length of 20 mm. It features a precise 1:50 taper ratio (narrowing gradually along its length), creating a self-locking friction fit when driven into a reamed
